Multiple configurations are available：

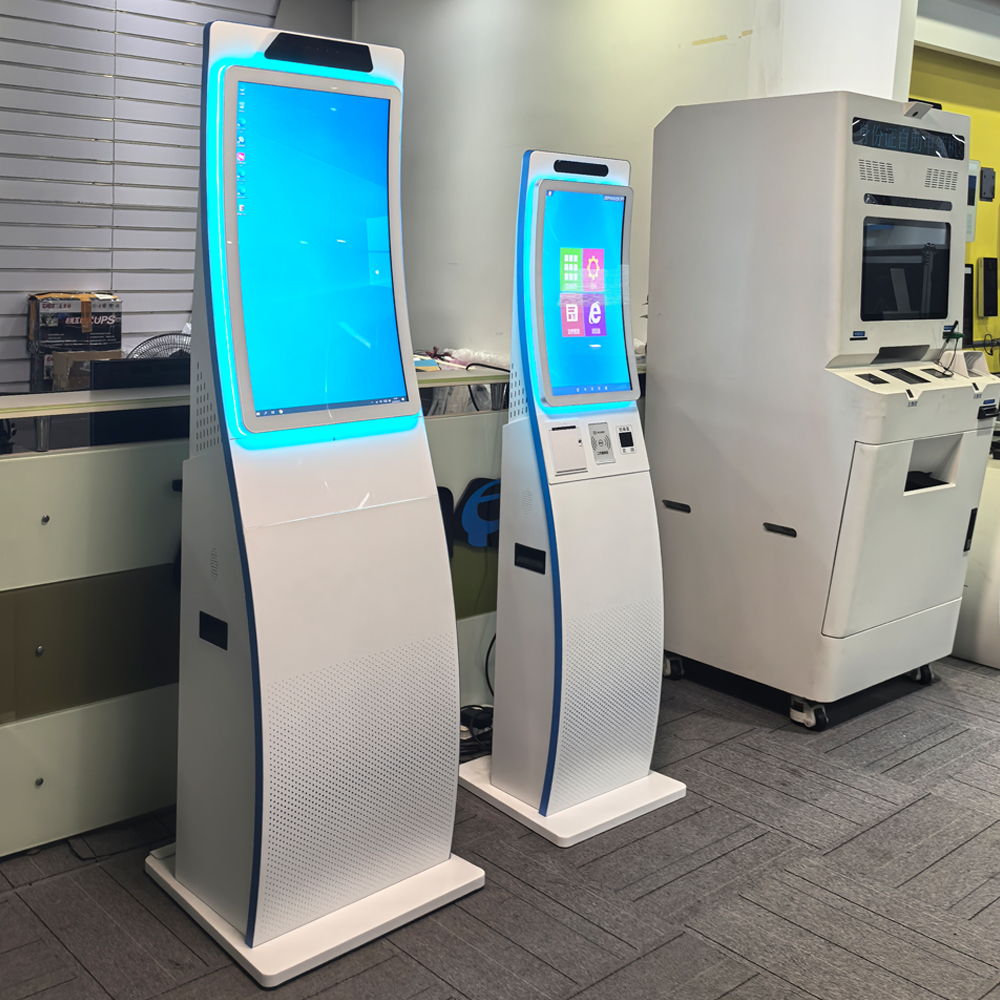

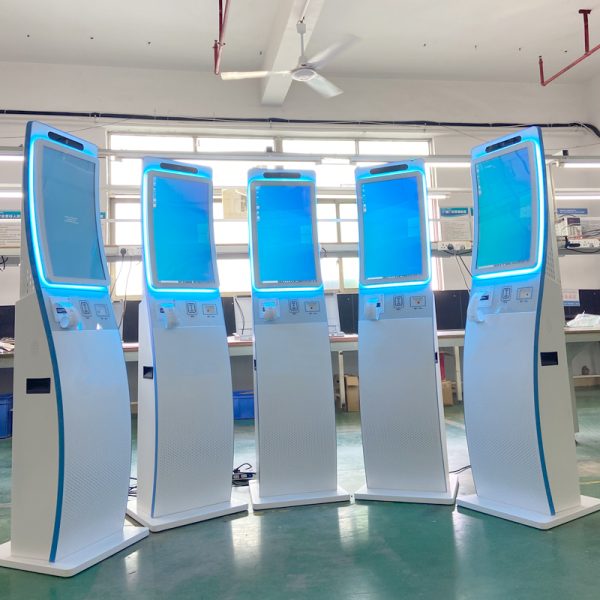

1. 23.6 inch / 32 inch touch screen kiosk

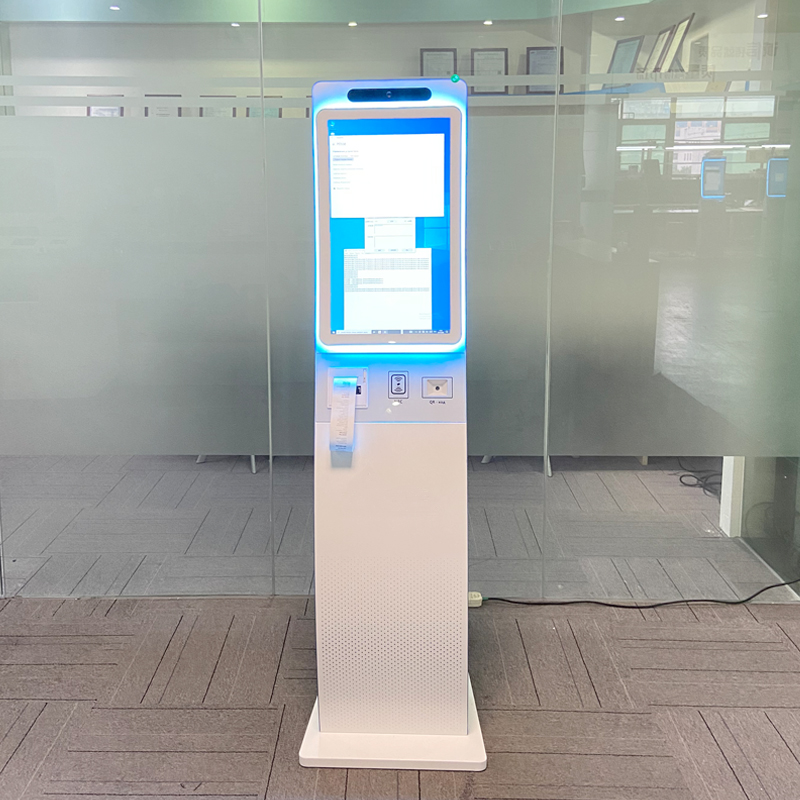

2. 23.6 inch / 32 inch touch screen kiosk with camera

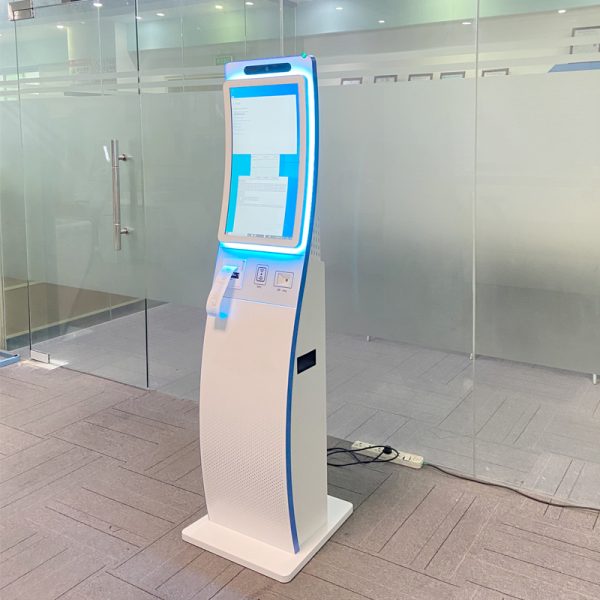

3. 23.6 inch / 32 inch touch screen kiosk with printer

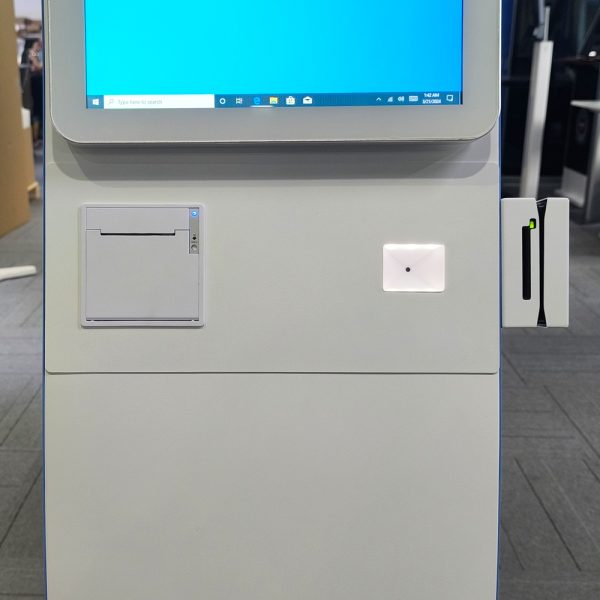

4. 23.6 inch / 32 inch touch screen kiosk with QR code
5. 23.6 inch / 32 inch touch screen kiosk with card reader
6. 23.6 inch / 32 inch touch screen kiosk with QR code and printer
7. 23.6 inch / 32 inch touch screen kiosk with card reader and printer
8. 23.6 inch / 32 inch touch screen kiosk with QR code printer and card reader
Product Specification
|
System
|
OS System
|
Android 7/ 9/ 11/12/14, RK3568/ RK3588/ RK3576
|
|
Win7/ 8/ 10/11, i3/ i5/ i7
|
||
|
Linux
|
||
|
RAM and ROM
|
Android ( 2G+8G, 4G+32G, 4G+64G and 8G+128G)
|
|
|
Windows (2G/ 4G/ 8G/ 16G, 64G/ 128G/ 256G/ 512G)
|
||
|
Touch
|
Touch function
|
Capacitive touch, No need touch
|
|
Panel
|
Brand
|
LG/ BOE/ AUO
|
|
Resolution
|
1920*1080
|
|
|
Viewing Angle
|
178/178
|
|
|
Colour Brightness
|
16.7M
|
|
|
Contrast Ratio
|
5000:1
|
|
|
Brightness
|
200cd/m2 (customizable)
|
|
|
Aspect Ratio
|
16:9
|
|
|
Response time
|
5-6ms
|
|
|
Network
|
WIFI
|
Support
|
|
RJ45
|
Support
|
|
|
Audio
|
Built-in stero speakers
|
5W*2/ 8W*2/ 10W*2
|
|
Power
|
Power input
|
12V/7A
|
|
Interface
|
Interface
|
HDMI/ VGA/ 2*USB2.0/ 2*USB3.0/ Power supply
|
|
General Information
|
Material
|
Metal case, 3mm temper glass at front side
|
|
Color
|
White blue(Customized color upon request)
|
|
|
Storage Temp
|
(-10 — 50degree)
|
|
|
Working Temp
|
(0 — 40degree)
|
|
|
Storage/Working Humidity
|
(10 — 90﹪ )
|
|
|
Certificates
|
ISO9001, CE, FCC & Rohs
|
|
|
Optional
|
Camera
|
Optional
|
|
logo
|
Acceptable customization
|
|
|
Printer
|
58mm/80mm printer
|
|
|
Card reader
|
Optional
|
|
|
Microphone
|
Optional
|
|
|
QR code
|
Optional
|
|
|
Wheels
|
Optional
|

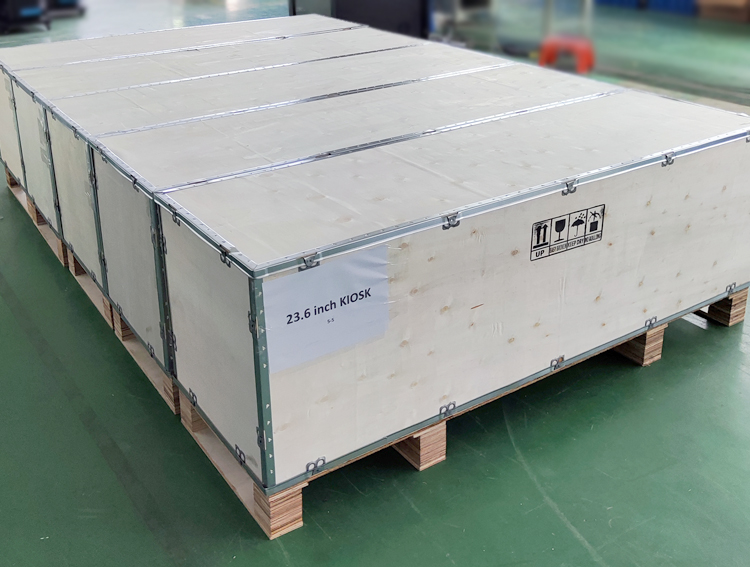

Package information:
23.6 inch :
Net weight: 35 kg
Gross weight: 61 kg
Package size: 1730*540*660mm
32 inch:
